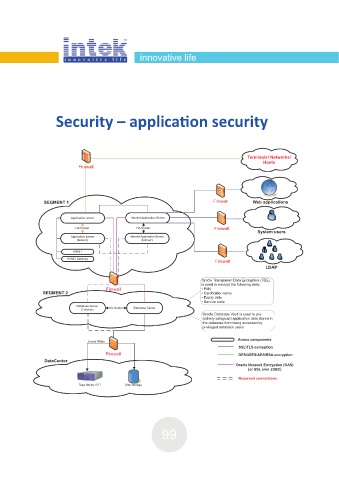

Security – applica on security

Terminals/ Networks/
Hosts
Firewall

SEGMENT 1 Firewall Web applications

Application server Internet Application Server
HA Cluster HA Cluster Firewall
System users
Application server Internet Application Server
(failover) (failover)
HSM 1
HSM 2 (backup)
Firewall
LDAP

Oracle Transparent Data Encryption (TDE)
is used to encrypt the following data:
Firewall • PAN
SEGMENT 2 • Cardholder name
• Expiry date
• Service code
Database Server
HA Cluster Database Server
(Failover)
Oracle Database Vault is used to pro-
actively safeguard application data stored in
the database from being accessed by
privileged database users
Ariana components
Oracle RMan
SSL\TLS encryption
Firewall DES\3DES\AES\RSA encryption
DataCenter
Oracle Network Encryption (OAS)
(or SSL over JDBC)
Reserved connections
Tape libriary /VTl Disk Storage
